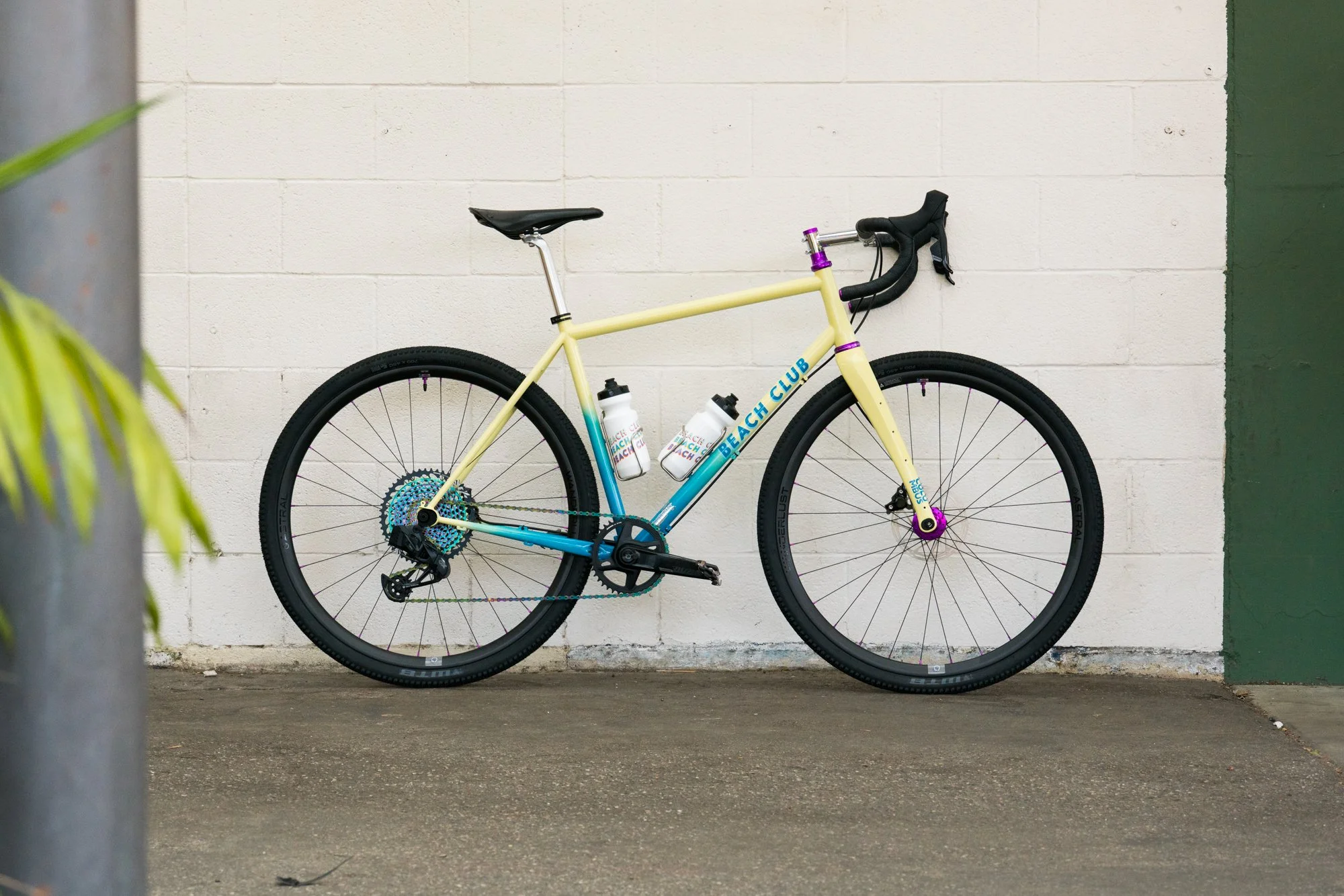

Beach Club Gravioli Frame | Yellow-Blue Fade
Beach Club offers YOU a bike that is super capable on the steep gravel of Los Angeles but also a joy to ride on the road, designed for the long stretches of tarmac you encounter before hitting any of our dirt roads or urban trails. We think the Gravioli hits this sweet spot by offering plenty of thrills on singletrack while still holding its own on speedier surfaces. Picture yourself riding the Gravioli along a pebble-lined road and rewarding yourself at your favorite remote ravioli stand.
Our frames are built in Portland, OR by Oscar at Simple Bike Co from Columbus Zona Tubesets with Columbus’s Futura Cross+ Fork that’s flat-mount disc brake compatible. The fork also features Colombus’ chocolate chip honey dip flip chip to change up that fork rake. (Columbus actually asked us not to refer to the flip chip with that handle but it was too good not to use). These frames also have a nice tall headtube for a comfier gravel setup, available in sizes from 48cm to 60cm. If your size is marked out of stock, email us at sup@beachclubzzz.com !!
Frame: Columbus Zona Tubing
Fork: Columbus Futura Cross+ Carbon Flat Mount
Spacing: TA 12x100mm Front / 12x142mm Rear
We Recommend using a Wide or Gravel Specific Crankset. If you plan on using Campagnolo EKAR you will need to use a different compatible crankset, For Example Ingrid. EKAR crankset q factors are too narrow.
Cable Routing: Gravioli has fully external cable routing for simplicity. You can set it up 1x or 2x with a 29.8 FD. There are no holes for Di2 Routing, so any mechanical groupset or wireless groupset is the way to go!
Headset: EC34/EC44
Bottom Bracket: BSA Threaded 68mm
Brake Mounts: Flat Mount F/R
Seat Post: 27.2mm
Seat Post Clamp: 29.8 (clamp included w/ frame)
Tire Clearance: 700x45c or 650x2.1”
Weight: Light
Finish: All frames are hand painted here in the USA, no decals, all wet paint! If you are interested in a custom color, break open your piggy bank and reach out to us by email at sup@beachclubzzz.com or swing by the shop to chat!
Shipping: We can ship anywhere in the world. Email sup@beachclubzzz.com for an estimate.
Complete Builds: Contact us!
